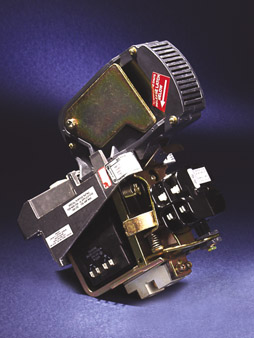

DC Devices   Type 700 1250 Ampere 1000 Volt DC Contactor   Ideal for regenerative and non-regenerative systems requiring limited interrupting capacity, such as gas and oil well drilling equipment, transit and rail systems, adjustable speed drives, electic haul trucks, mining machinery, fuel cells, uninterruptible power supplies, and crane controls.   Features:     •   UL recognized/CSA certified   •   Non-polarized arc chute design   •   Optional Over Current Hold-In   •   Bifurcated main contacts   •   Silver-plated current carrying-parts   •   High dielectric and mechanical strength   •   Special ratings available�consult Hubbell Industrial Controls   Specifications:     •   Catalog 42700   •   100D DC Devices         Type 700 1250 Ampere 1000 Volt DC Contactor No Part Number Description Image Stock Qty Price Each Qty Ord'd Update Cart 1 HIC-HC14193100512 Hubbell Contactor Type 700  Part HC14193100512  1250 AMP, 1000 Volt DC  aka HC14193100512  Single Pole Normally Open Contactor, SPNO  UL Recognized File E51344 / CSA Certified File LR91674-2  Catalog 42700 March 2013  14-193 Type 700 1250 Ampere 1000 Volt DC Contactor  100 = Without OHCI  51 = 12 Volt DC, 4.6 OHMS @ 20 Degree C  2 = 2 NO & 2 NC Auxilary Contacts  part 14-193-100-512  Ships in 60 days, NC Archdale  Dated 1-19  (24LBS) - 0 $5,272.00 2 HIC-HC14193101563 Hubbell Contactor Type 700  Part 14-193-101-563  aka HC14193101563  1250 AMP, 1000 Volt DC  Single Pole Normally Open Contactor, SPNO  UL Recognized File E51344 / CSA Certified Fole LR91674-2  Catalog 42700 March 2013  14-193 Type 700 1250 Ampere 1000 Volt DC Contactor  101 = With OCHI  56 = 74 Volt DC, 125 OHMS @ 20 Degree C  3 = 3 NO & 1 NC Auxilary Contacts  Part HIC-HC14193101563  part 14-193-101-563  aka HC14193101563  Ships in 70 Work Days, NC Archdale  Dated 03-2024  (24LBS) - 0 $5,544.45 3 HIC-HC14193100577 Hubbell DC Contactor 700  Part HC14193100577  part 14193100577  aka HC14193100577  Type 700 DC Contactor  1250 AMP  Ships in 40 Days, NC Archdale  Dated 1-19 - 0 $4,768.00 4 HIC-HC14193100572 Hubbell ICD DC Contactor 700  Part 14193100572  aka HC14193100572  TYPE 700, 1250A DC CONTACTOR  WITHOUT OVER CURRENT HOLD-IN (OCHI)  1250 AMP  Auxiliary Contacts, 2 NO & 2 NC  Mounts on 2 in. x 3 in. Angle Support with two ? in. screws  DC Coil Voltage 96  Amperage Rating 1250 AMP  Operating Voltage, 1000 VDC  Origin USA  Export Code 8536490065  Ships in 40 Days, NC Archdale  Dated 07-2022  (30LBS) - 0 $5,272.00 5 HIC-HC14193100527 Hubbell DC Contactor 700  Part HC14193100527  part 14193100527  aka HC14193100527  Type 700 DC Contactor  1250 AMP  Ships in 30 Days, NC Archdale  Dated 1-19 - 0 $4,768.00 6 HIC-HC14193100522 Hubbell DC Contactor 700  Part HC14193100522  part 14193100522  aka HC14193100522  Type 700 DC Contactor  1250 AMP  Ships in 40 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 7 HIC-HC14193100523 Hubbell DC Contactor 700  Part HC14193100523  part 14193100523  aka HC14193100523  Type 700 DC Contactor  1250 AMP  Ships in 30 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 8 HIC-HC14193100521 Hubbell ICD DC Contactor 700  Part 14193100521  aka HC14193100521  Type 700 DC Contactor  1250 AMP  Origin USA  Export Code 8536490065  Ships in 40 Days, NC Archdale  Dated 01-2023 - 0 $5,272.00 9 HIC-HC14193101572 Hubbell ICD DC Contactor 700  Part 14-193-101-572  aka HC14193101572  1250 AMP  With OCHI  Ships in 25 Days, NC Archdale  Dated 01-2021 - 0 $5,712.00 10 HIC-HC14193100532 Hubbell DC Contactor 700  Part HC14193100532  part 14193100532  aka HC14193100532  Type 700 DC Contactor  1250 AMP  Ships in 40 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 11 HIC-HC14193100587 Hubbell ICD DC Contactor Type 700  Part 14-193-100-587  aka HC14193100587  1250 AMP DC   1 Pole  Ships in 40 Days, NC Archdale  Dated 01-2022 - 0 $4,768.00 12 HIC-HC14193100584 Hubbell TYPE 700 1250 AMP DC CONTACTOR [Lead Time: 25 days]  Dated 1/18  aka HC14193100584 - 0 $5,272.00 13 HIC-HC14193100585 Hubbell TYPE 700 1250A DC CONTACTOR [Lead Time: 15 days]  Dated 1/18  aka HC14193100585 - 0 $5,272.00 14 HIC-HC14193100582 Hubbell ICD DC Contactor 700  Part 14-193-100-582  aka HC14193100582  1250 AMP 100 Volt DC Contactor  Catalog 42700  S.P.N.O., Single Pole Normally Open  UL Recognized File E51344  CSA Certification File LR91674-2   14-193 = Special Purpose Type 700 Series  100 = For Contactor Without OCHI  58 = Coil 125 Volts DC  2 = AUX Contacts 2 NO & 2 NC  Origin USA  Export Code 8536490065  Ships in 40 Days, NC Archdale  Dated 02-2024 - 0 $5,117.36 15 HIC-HC14193100583 Hubbell DC Contactor 700  Part HC14193100583  part 14193100583  aka HC14193100583  Type 700 DC Contactor  1250 AMP  Ships in 40 Days  Dated 1-19 - 0 $5,272.00 16 HIC-HC14193100581 Hubbell DC Contactor 700  Part HC14193100581  part 14193100581  aka HC14193100581  Type 700 DC Contactor  1250 AMP  Ships in 25 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 17 HIC-HC14193100542 Hubbell DC Contactor 700  Part HC14193100542  part 14193100542  aka HC14193100542  Type 700 DC Contactor  1250 AMP  Ships in 40 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 18 HIC-HC14193101582 Hubbell DC Contactor 700  Part 14-193-101-582  aka HC14193101582  700 Series  1250 AMP  1000 Volt  Single Pole  Normally Open  With Over Current Hold In / OCHI  2 = 2 N0 & 2 NC Auxiliary Contact Arrangement   Ships in 40 Days, NC Archdale  Dated 05-2024  (24LBS) - 0 $5,712.00 19 HIC-HC14193101583 Hubbell DC Contactor 700  Part 14-193-101-583  aka HC14193101583   1250 AMP  With OCHI  Ships in 25 Days, NC Archdale  Dated 01-2021 - 0 $5,712.00 20 HIC-HC14193100517 Hubbell DC Contactor 700  Part HC14193100517  part 14193100517  aka HC14193100517  Type 700 DC Contactor  1250 AMP  Ships in 60 Days  Dated 1-19 - 0 $4,768.00 21 HIC-HC14193100592 Hubbell ICD DC Contactor   Part 14-193-100-592  aka HC14193100592  Type 700  1250 AMP DC  Ships in 40 Days, NC Archdale  Dated 01-2022 - 0 $5,272.00 22 HIC-HC14193100593 Hubbell TYPE 700 1250A DC CONTACTOR W/O OCHI [Lead Time: 25 days]  Dated 1/18  aka HC14193100593 - 0 $5,272.00 23 HIC-HC14193100573 Hubbell DC Contactor 700  Part HC14193100573  part 14193100573  aka HC14193100573  Type 700 DC Contactor  1250 AMP  Ships in 15 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 24 HIC-HC14193101592 Hubbell ICD Contactor 700  Part 14-193-101-592  aka HC14193101592  DC Contactor  TYPE 700  1250 AMP  With OCHI  Ships in 40 Days, NC Archdale  Dated 01-2021 - 0 $5,712.00 25 HIC-HC14193100564 Hubbell DC Contactor 700  Part HC14193100564  part 14193100564  aka HC14193100564  Type 700 DC Contactor  1250 AMP  Ships in 30 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 26 HIC-HC14193100563 Hubbell DC Contactor 700  Part HC14193100563  part 14193100563  aka HC14193100563  Type 700 DC Contactor  1250 AMP  Ships in 40 Days, NC Archdale  Dated 1-19 - 0 $5,272.00 27 HIC-HC14193100561 Hubbell DC Contactor 700  Part HC14193100561  part 14193100561  aka HC14193100561  Type 700 DC Contactor  1250 AMP  Ships in 30 Days, NC Archdale  Dated 1-19 - 0 $5,272.00   Type 700 1250 Ampere 1000 Volt DC Contactor, Replacement Parts No Part Number Description Image Stock Qty Price Each Qty Ord'd Update Cart 1 HIC-HC14183218501 Hubbell ICD Contactor Coil  Part 14-183-218-501  aka HC14183218501  74 Volts DC, 125 OHM  For Type 397, 398, 700 & 710 DC Contactors  Publication 42700  Ships in 1 Week, NC Archdale  Dated 01-2022 - 0 $830.00 2 HIC-HC14192890524 Hubbell Aux Interlock Contact Kit  Part HC14192890524  Type 707  524  part 14-192-890-524  aka HC14192890524  Ships in 30 Days, NC Archdale  Dated 1-2020 - 0 $416.00 3 HIC-HC14183315501 Hubbell Coil  96 Volts DC  Type 700, 710  Part HIC-HC14183315501  part 14-183-315-501  aka HC14183315501 - 0 $830.00 4 HIC-HC14192890523 Hubbell ICD Contact Kit 523  Part 14-192-890-523  aka HC14192890523  Type 707  Auxiliary Interlock Contact Kit 523  Origin USA  Export Code 8538908180  Ships from Stock to 40 Days, NC Archdale  Dated 01-2024  (2LBS) H 4" L 8" W 4" Box - 0 $474.25 5 HIC-HC14192682801 Hubbell ICD Arc Chute Kit 700  Part 14-192-682-801  aka HC14192682801  Type 700 Contactor  Ships in 15 Days, Archdale NC  Dated 3-2020 - 0 $1,080.00 6 HIC-HC14192681801 Hubbell ICD Arcing Contactor Kit 700  Part 14-192-681-801  aka HC14192681801  Type 700 Contactor TY  Ships in 15 Days, NC Archdale  Dated 08-2021 - 0 $416.00 7 HIC-HC14192680801 Hubbell ICD Main Contact Kit 700  Part 14-192-680-801  aka HC14192680801  Type 700 Contactor  Ships in 15 Days, NC Archdale  Dated 01-2024 - 0 $688.56 8 HIC-HC14192890513 Hubbell Aux Interlock Contact Kit  Part 14-192-890-513  aka HC14192890513  Type 707 Aux Interlock Contact Kit  -513  Ships in 15 Days, NC Archdale  Dated 1-19 - 0 $416.00 9 HIC-HC14183277501 Hubbell Coil  36 Volts DC  Type 700, 399, 710  Part HIC-HC14183277501  part 14-183-277-501  aka HC14183277501 - 0 $748.00 10 HIC-HC14183326501 Hubbell Coil  48 Volts DC  Type 700, 710, 399  Part HIC-HC14183326501  part 14-183-326-501  aka HC14183326501 - 0 $748.00 11 HIC-HC14183324501 Hubbell ICD Coil  Part 14-183-324-501  aka HC14183324501  SIE 110125  110 / 125 Volt DC  Type 700, 710  Ships from Stock to 4 Weeks  Dated 08-2023 - 0 $914.00 12 HIC-HC14183325501 Hubbell ICD Coil 700  Part 14-183-325-501  aka HC14183325501  250 Volts DC  Type 700  Ships in 10 Days, NC Archdale  Dated 07-2022  (6lbs) - 0 $914.00 13 HIC-HC14183323501 Hubbell ICD Operating Coil  Part 14183323501  aka HC14183323501  12 Volts DC  Type 700 - 710  Ships in 6 to 8 Weeks, NC Archdale  Dated 08-2023 - 0 $748.00 14 HIC-HC14183219501 Hubbell Coil  28 Volts DC  Type 700, 710 & 399  Part HIC-HC14183219501  part 14-183-219-501  aka HC14183219501 - 0 $748.00

Secure Online Order   Secure Online Order   8,387 part numbers available for online order   Shopping Cart Empty Checkout is secure   Products Available From Stock Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features   Part Number Lookup   Enter at least three characters of a Hubbell part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:   Part Number:   Search scope: This web site only   Formal PDF Quotation   To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.   Your shopping cart is kept intact and you can still check out at a later time.

Magnet Controls Magnet Controls      • 4291 Euclid Magnet Controllers      Varistor Type    • 4292 Compact Magnet    • Controller YARDMASTER    • 4292P Compact Magnet      Controller YARDMASTER PUP    • 4295 Euclid Magnet Controller      Resistor Type Auto Discharge    • 4296 Euclid Magnet Controller      Resistor Type Manual      Discharge    • 4310 Lifting Magnet Disconnect      Switch    • 4320 Lifting Magnet Power      Supplies    • Service Bulletins (Publications)   Hubbell Euclid Magnet Controllers utilize heavy duty components and circuitry arranged to provide optimum control of your lifting magnet. Full featured NEMA Type 1 or 3R enclosed magnet controllers are available for immediate shipment. Of course, we welcome inquiries for custom applications as well.

DC Devices DC Devices      • 42264 Type 264 400 AMP      600 Volt DC Contactor    • 42700 Type 700 1250 AMP      1000 Volt DC Contactor    • 42703 Type 703 5000 AMP      1000 Volt DC Contactor    • 42710 Type 710 700 AMP      1500 Volt DC Contactor Dual      Two Pole Switch    • 42711 42712 Type 711/712      1600 AMP 1500 Volt DC      Motor Operated Switch    • 42716 Type 716 1600 AMP      1500 Volt DC Contactor    • 42720 Type 720 200 AMP      600 Volt DC Contactor    • Service Bulletins (Publications)   The latest addition to the Hubbell Industrial Controls family are DC Devices used in solid-state adjustable speed drives, uninterruptable power supplies, fuel cells, crane controls, transit and rail vehicles, gas and oil well drilling equipment, mining machinery, and more. These devices are ideal for a wide range of heavy duty applications.



Electronic Components Electronic Components      • 5330 Electronic Frequency      Relay    • 5350 Static In-Line Timer    • 5360 Arc Suppressor    • 5370 DC Electronic Overload      Relay   The Bulletin 5330 Electronic Frequency Relay (EFR) master/slave system is designed to be used with wound rotor motor controls. The master unit is a complete frequency relay providing one point of frequency detection.   The Bulletin 5350 Static In-Line Timer is a solid state timing unit for use in AC or DC contactor and relay control.   The Bulletin 5360, Hubbell Arc Suppressor, is designed to reduce contact arcing in DC control circuits where the inductive coil loads of contactors and relays are interrupted.   The Bulletin 5370 Electronic Overload Relay receives line current signals from an ammeter shunt and performs both the Inverse Time as well as the instantaneous Trip functions normally performed by two (2) separate electro-mechanical overload relays.

Limit Switches Limit Switches      • 4220 Euclid Power Limit Switch    • 4225 Quick Break Power Limit      Switch    • Series 54 Geared Rotary      Limit Switch NEMA 1-12    • Series 55 Geared Rotary Limit      Switch NEMA 4, 7, 9   Type 4220: D-C Limit Switches are devices that are used to interrupt the main power circuit, setting up a dynamic braking circuit that quickly stops hook travel with a minimum of drift.   A-C Limit Switches are similar in construction to D-C Limit Switches. The difference is in operation. A-C Limit Switches disconnect two power lines to the hoist motor which then is stopped by a magnetic brake.   Type 4225: Euclid quick break limit switches for hoists are normally closed by the weight of the striking lever. The movement of the lever on its upward travel, when engaged by the hoist hook block on its upward travel, causes the switch to quickly break the circuit to the motor with very little upward movement of the crane hook. The switch is automatically reset by the weight of the striking lever when the hook is lowered.

AC/DC Contactors and Relays AC/DC Contactors and Relays      • 5110 AC Magnetic Contactor    • 5210 DC Magnetic Contactor    • 5247 Alternating Relay    • 5320 Euclid DC Relay    • Service Bulletins (Publications)   Rugged Euclid contactors feature many unique design and engineering advancements that greatly simplify applications, installations and servicing. Over 65 years of experience in design as well as manufacturing has been incorporated into these highly reliable units.   DC Relays, Type 5320, general purpose control, voltage sensitive, current, and plugging relays are built to withstand severe service using the latest technology in materials for insulating and high-strength. They are recommended for use on heavy industry dc drives such as cranes and mill auxiliaries.

Master Switch/Drum Controllers Master Switch/Drum Controllers      • 4211 Mini-Master Switch    • 4215 Magnet Controller      Lift/Drop Switches    • 4216 Cam Operated Master      Switch    • 4253 Class 53 Master Switch    • 4258 Class 58 Drum Switch    • Service Bulletins (Publications)   Type 4211 Mini-Master: The Euclid Mini-Master Switch uses a handle operated cam switch mechanism in a NEMA rated housing. It is engineered for use where master switch control is preferred, for CMAA duty overhead crane and similar applications.   Type 4216 Mill Master: These master switches are of rugged construction to withstand the rough service encountered on applications in the steel mills, such as crane, coal, and ore bridges, blooming and rolling mill auxiliaries, etc., where either floor or desk mounting is required.   Type 4253: Master Switches are used to provide single handle pilot control of hoists, cranes, oven pushers, car movers and other equipment requiring speed steps of wound rotor or direct current motors.   Type 4258: Drum Controllers start, stop and change the speed and/or rotating direction of reversible AC and DC electric motors.



Magnetic Drum Brakes Magnetic Drum Brakes      • Class 5010 Type F Magnetic      Drum Brakes    • Class 5060 Type AT Adjustable      Torque Brakes    • Class 5010 Brake Rectifier    • Brake Shoes, Linings, Bolts      and Pins    • Service Bulletins (Publications)   Class 5010 Type F: Magnetic drum brakes are spring set, electrically released, drum type friction brakes which are used with either AC or DC motors, used as holding brakes on DC series motor drives, crane hoists, mill drives, and transfer cars.   Class 5060 Type AT: Adjustable torque brakes are dual-purpose, drum-type friction brakes that combine an electrically released, spring-set holding brake with an electrically operated, adjustable torque stopping brake within one brake frame.   Class 5010 Brake Rectifier: Converts AC line power to DC for use with a rectifier operated brake. A high speed forcing circuit provides optimum operation of the brake.

LED Bridge Crane Lighting LED Bridge Crane Lighting   LED Bridge Crane Lighting: The HBLC LED Highbay is specifically designed to be used on heavy industrial bridge cranes while utilizing AC or DC input voltage. Custom engineered LED optics provide evenly distributed light for bridge crane operators and others working under the crane for increased visibility and safety.

Pendant Pushbutton Stations Pendant Pushbutton Stations      • 2040 Euclid PBM Pendant      Station    • 2030 Compact Pendant Station    • 2020 Euclid PBP Pendant      Station    • 2015, 2016, 2017 Euclid      Pendant Station    • 2001 Euclid HD Steel Pendant      Station    • PBC, WPBC and XPBC      Replacement Parts   HD stations of heavy duty steel or aluminum may be pendant or surface mounted. They are shipped fully assembled and ready for customer connections.   PBC, WPBC, and XPBC are cam operated stations assembled in a variety of enclosure types. These stations are available with special circuit configuration and can be from one to five speeds, stepped or stepless operation. Many options are available for this type of station, including duplex construction with conduit boxes selector switches and many other special features.

Power Resistors Power Resistors      • SSR Type 3003 Power      Resistor    • SSR Type 3003 Power      Resistor Frame    • SSR Type 3003 Power      Resistor Metal Cover    • Euclid Type 3004 K Power      Resistor    • HHC Type 3005 Power      Resistor   Hubbell Type SSR Power resistors from 1.3 amps through 101 amps are available, from unassembled to completely assembled in frames with covers. Standard assemblies are pre-engineered for primary or secondary resistance, and are used in typical applications such as motor starting or dynamic braking. Construction elements are stainless steel around a porcelain insulator, manufactured for endurance and reliability.   Heavy duty Types K1 and HHC resistors also utilize continuous stainless steel elements, with no weld joints where hot spots could develop. These resistors are available in ranges from 38 amps to 695 amps.



Pressure Switches Pressure Switches      • 4269ES 69ES Pressure Switch      Water Systems    • 4269W 69W Pressure Switch      Water Systems    • 4269J 69J Pressure Switch      Air Systems    • 4269H 69H Pressure Switch      Air Systems    • 4269SA 69 Pressure Switch      Special Application    • Available from stock   Hubbell pressure switches provide automatic control for air or water systems such as compressors, dry sprinkler systems, and well pumps or pumping systems. Thousands of variations are available to provide maximum flexibility at minimum cost.

Speed Switches Speed Switches      • 2200 Speed Switch Type PR    • 2210 Speed Switch Type C    • 2220 Speed Switch Type F    • 2243 Speed Switch Type D    • 2260 Speed Switch Type E    • 2310 Speed Switch      Non-contact   Speed responsive switches detect motion, or sense over-speed or under-speed occurrences of industrial machinery or motors. Hubbell Industrial Controls, Inc. has both direct coupled or non-contact type switches for; directional, non-directional, plugging, anti-plugging, over-speed, under-speed, and also zero-speed applications. Many enclosure styles are available including surface or flange mounting with NEMA 3, 4, 7, 9, 10 or 13 construction.

Radio Control Products Radio Control Products   A typical radio remote control system consists of a portable transmitter carried by the operator, and a receiver installed on the crane, the locomotive, or other remote machinery. Each system operates on a licensed frequency in the 72 to 76 MHz or the 450 to 470 MHz bands, requiring the user to have an FCC license for the transmitter.

Disconnect Switches Disconnect Switches      • 4245 Euclid Manual-Magnetic      Disconnect Switch    • 4310 Lifting Magnet      Disconnect Switch    • 5140 Fused And Non-Fused      Disconnect Switch   Type 4245: The Manual-Magnetic Disconnect Switches are combinations manually and magnetically operated contactors enclosed in a NEMA Type wall-mounted enclosure.   The contactors for the disconnect switches are the same as the contactors used on Euclid's crane and mill type magnetic controllers. Silver faced contacts are standard.   Type 5410: Fused Disconnect - Rated 30amp-200amp. UL Listed.



Line-Arc AC and DC Contactors Line-Arc AC and DC Contactors      • 7004 Type M Line-Arc DC      Contactors    • 8503 Type M Line-Arc AC      Contactors   Class 7004 Type M Line-Arc® DC Contactors: Extremely rugged, mill duty DC contactors. Built of the highest-grade materials and tested to the toughest duty standards, Type M contactors feature the LINE-ARC method of arc extinction for the longer tip life. The Type M also features steel pan mounting and readily accessible power and control terminations.   Class 8503 Type M Line-Arc® AC Contactors: AC version of our Class 7004 Type M contactor. Ideally suited to control AC mill motors, these contactors are designed especially for heavy industry AC drives, such as cranes and mill auxiliaries. Furnished with a DC operating coil, rectifier blocks are available to supply power for several contactors.

Lifting Magnet Controllers Lifting Magnet Controllers     • Class 6815 Type A Lifting     Magnet Controllers     • Class 6815 Type M     Magnet Controllers     • Class 6815 Type MF Magnet     Controllers with Fanning     Control     • Class 6815 Type MG1 Lever     Lift-Drop Master Switch      • Service Bulletins (Publications)

Power Limit Switches Youngstown Power Limit Switches      • 6170 Youngstown Power      Limit Switches for AC and      DC Cranes    • 6715 Tab-Weld Resistors    • Service Bulletins (Publications)   This OSHA-required switch limits crane hoist over-travel in the hoisting direction. It is operated by the crane hoist hook block and directly interrupts the hoist motor current. EC&M created the first power limit switches used on cranes to help provide the highest level of crane safety. Youngstowns feature an automatic gravity reset mechanism, sealed bearings, and right- or left-hand operating arms.

Replacement Parts Replacement Parts and Modification Kits      • DC Coil    • Replacement Parts Kits    • Type MX11 Electrical Interlocks    • Type AI1 Arc Suppressor    • Types MM1, MM2, MM3, MM4,      MM5 Mechanical Interlocks    • Types KX3, KX4, KX5 Contact      Kits    • Type ML1, ML2, ML3 Lug Kits    • Types MT1, MT2, MT3, MT4,      MT5 Tie Bar Kit    • Pneumatic Timer Kit    • Type K DC Relays    • Type ST DC Static Timer    • Type SSI DC Acceleration      Module    • 9055 Magnetic Current      Overload Relays
