Power Resistors

SSR Type 3003 Resistor


The Type SSR Industrial Power Resistor series consists of two different types of units: a hexwound unit and an edgewound unit. Both types feature continuous resistive elements supported on porcelain insulated core strips.


Features:

  •   Rugged shock-resisting, non-breakable construction.
  •   Resistor assembly floats in slotted insulators.
  •   Corrosion resistant materials.
  •   Negligible temperature coefficient of resistance.
  •   Assembled resistor banks provide double insulation to ground.
  •   Individual resistor units in an assembled bank can be replaced without disrupting adjacent units.
  •   A variety of standard mounting frames, brackets, and enclosures.
  •   Assembled frames have identical mounting dimensions to old style assemblies. (Rod bolt mounted).

Specifications:

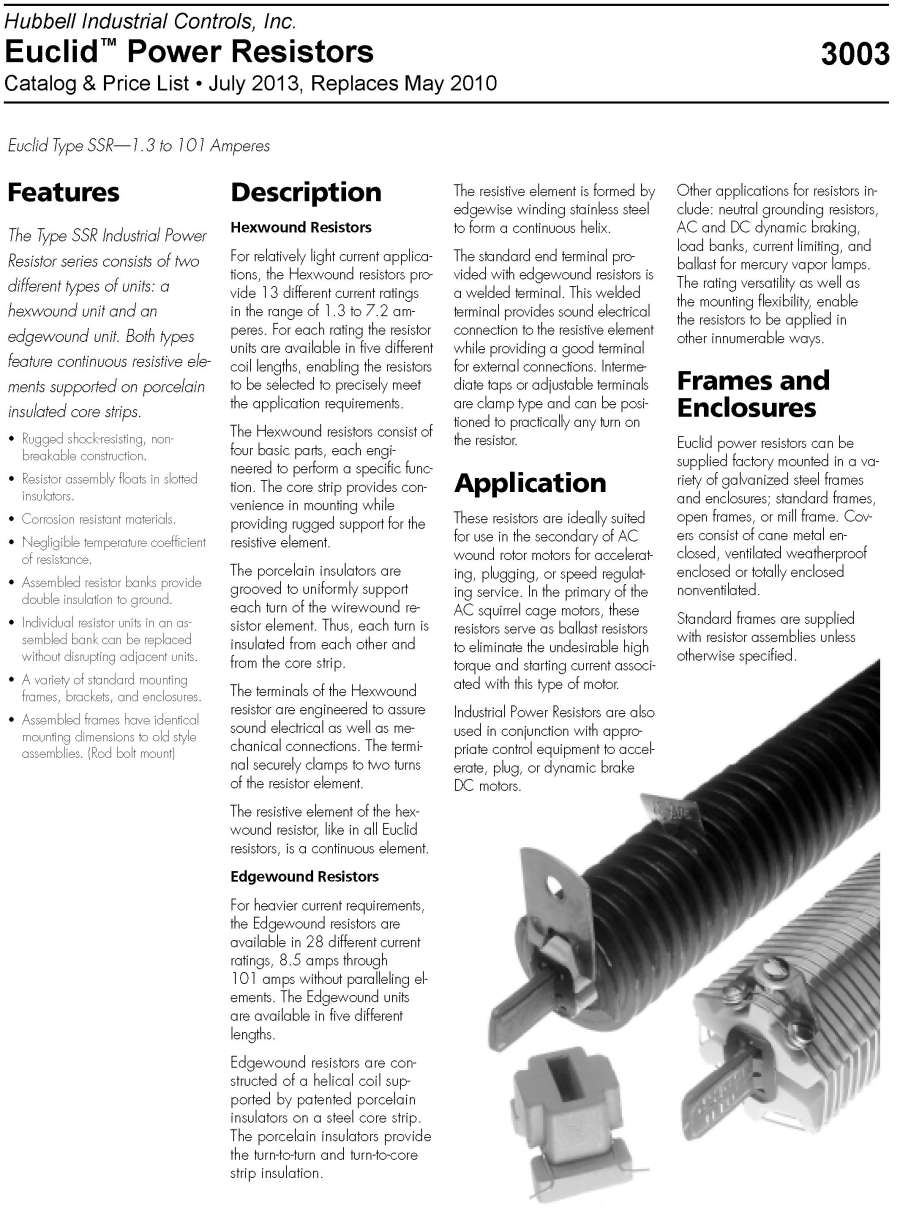

  •   Catalog 3000
  •   Data Sheet 3003
  •   Cross Reference 3000
  •   Current 3003 Price List, July 2013
  •   Legacy 3003 Price List, May 2010



Hubbell Type 3003 SSR Hexwound Size 3 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69423002 Hubbell Type 3003 SSR Hexwound Sz3 Resistor Coil (1.5a, 64.0O) [Lead time: 3-4 wks]
aka HC69423002
- 0 $224.00
2 HIC-HC69423004 Hubbell Type 3003 SSR Hexwound Sz3 Resistor Coil (2.0a, 40.0O) [Lead time: 3-4 wks]
aka HC69423004
- 0 $224.00
3 HIC-HC69423006 Hubbell Type 3003 SSR Hexwound Sz3 Resistor Coil (2.7a, 25.0O) [Lead time: 3-4 wks]
aka HC69423006
- 0 $224.00
4 HIC-HC69423007 Hubbell Type 3003 SSR Hexwound Sz3 Resistor Coil (3.0a, 20.0O) [Lead time: 3-4 wks]
aka HC69423007
- 0 $250.00
5 HIC-HC69423009 Hubbell ICD Resistor 3003
Part 69423009
aka HC69423009
Type 3003
SSR Hexwound
Size 3
Resistor Coil
4.0 AMP
13.00 OHM
Ships in
Dated
- 0 $250.00
6 HIC-HC69423010 Hubbell Type 3003 SSR Hexwound Sz3 Resistor Coil (4.6a, 10.2O) [Lead time: 3-4 wks]
aka HC69423010
- 0 $250.00
7 HIC-HC69423012 Hubbell Type 3003 SSR Hexwound Sz3 Resistor Coil (6.5a, 6.3O) [Lead time: 3-4 wks]
aka HC69423012
- 0 $300.00
8 HIC-HC69423013 Hubbell Type 3003 SSR Hexwound Sz3 Resistor Coil (7.2a, 5.1O) [Lead time: 3-4 wks]
aka HC69423013
- 0 $300.00
Hubbell Type 3003 SSR Hexwound Size 4 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69424002 Hubbell Type 3003 SSR Hexwound Sz4 Resistor Coil (1.5a, 87.0O) [Lead time: 3-4 wks]
aka HC69424002
- 0 $262.00
Hubbell Type 3003 SSR Hexwound Size 5 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69425002 Hubbell Type 3003 SSR Hexwound Sz5 Resistor Coil (1.5a, 110.0O) [Lead time: 3-4 wks]
aka HC69425002
- 0 $288.00
2 HIC-HC69425004 Hubbell Type 3003 SSR Hexwound Sz5 Resistor Coil (2.0a, 69.0O) [Lead time: 3-4 wks]
aka HC69425004
- 0 $288.00
3 HIC-HC69425006 Hubbell Type 3003 SSR Hexwound Sz5 Resistor Coil (2.7a, 44.0O) [Lead time: 3-4 wks]
aka HC69425006
- 0 $288.00
4 HIC-HC69425007 Hubbell Type 3003 Resistor
SSR Hexwound Sz5 Resistor Coil
(3.0a, 34.0O)
Ship in 3 to 4 Weeks
aka HC69425007
- 0 $312.00
5 HIC-HC69425010 Hubbell Type 3003 SSR Hexwound Sz5 Resistor Coil (4.6a, 18.0O) [Lead time: 3-4 wks]
aka HC69425010
- 0 $312.00
6 HIC-HC69425011 Hubbell Type 3003 SSR Hexwound Sz5 Resistor Coil (5.2a, 14.0O) [Lead time: 3-4 wks]
aka HC69425011
- 0 $374.00
7 HIC-HC69425012 Hubbell Type 3003 SSR Hexwound Sz5 Resistor Coil (6.5a, 11.0O) [Lead time: 3-4 wks]
aka HC69425012
- 0 $374.00
8 HIC-HC69425013 Hubbell Type 3003 SSR Hexwound Sz5 Resistor Coil (7.2a, 8.7O) [Lead time: 3-4 wks]
aka HC69425013
- 0 $374.00
Hubbell Type 3003 SSR Hexwound Size 6 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69426002 Hubbell Type 3003 SSR Hexwound Sz6 Resistor Coil (1.5a, 133.0O) [Lead time: 3-4 wks]
aka HC69426002
- 0 $324.00
2 HIC-HC69426004 Hubbell Type 3003 SSR Hexwound Sz6 Resistor Coil (2.0a, 83.0O) [Lead time: 3-4 wks]
aka HC69426004
- 0 $324.00
3 HIC-HC69426007 Hubbell Type 3003 SSR Hexwound Sz6 Resistor Coil (3.0a, 42.0O) [Lead time: 3-4 wks]
aka HC69426007
- 0 $362.00
Hubbell Type 3003 SSR Hexwound Size 7 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69427002 Hubbell Type 3003 SSR Hexwound Sz7 Resistor Coil (1.5a, 156.0O) [Lead time: 3-4 wks]
aka HC69427002
- 0 $350.00
2 HIC-HC69427006 Hubbell Type 3003 SSR Hexwound Sz7 Resistor Coil (2.7a, 62.0O) [Lead time: 3-4 wks]
aka HC69427006
- 0 $350.00
3 HIC-HC69427009 Hubbell Type 3003 SSR Hexwound Sz7 Resistor Coil (4.0a, 31.0O) [Lead time: 3-4 wks]
aka HC69427009
- 0 $400.00
4 HIC-HC69427010 Hubbell Type 3003 SSR Hexwound Sz7 Resistor Coil (4.6a, 25.0O) [Lead time: 3-4 wks]
aka HC69427010
- 0 $400.00
Hubbell Type 3003 SSR Edgewound Size 3 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69283005 Hubbell ICD Resistor 3003
Part 69283005
aka HC69283005
Type 3003 SSR Edgewound Resistor Coil
Size 3
11 AMP
3.760 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $224.00
2 HIC-HC69283008 Hubbell ICD Resistor 3003
Part 69283008
aka HC69283008
Type 3003 SSR Edgewound Resistor Coil
Size 3
13 AMP
2.70 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $224.00
3 HIC-HC69283010 Hubbell ICD Resistor 3003
Part 69283010
aka HC69283010
Type 3003 SSR Edgewound Resistor Coil
Size 3
16 AMP
2.080 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $224.00
4 HIC-HC69283011 Hubbell ICD Resistor 3003
Part 69283011
aka HC69283011
Type 3003 SSR Edgewound Resistor Coil
Size 3
18 AMP
1.430 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $262.00
5 HIC-HC69283015 Hubbell ICD Resistor 3003
Part 69283015
aka HC69283015
Type 3003 SSR Edgewound Resistor Coil
Size 3
27 AMP
0.7460 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $262.00
6 HIC-HC69283018 Hubbell ICD Resistor 3003
Part 69283018
aka HC69283018
Type 3003 SSR Edgewound Resistor Coil
Size 3
37 AMP
0.4280 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
7 HIC-HC69283019 Hubbell ICD Resistor 3003
Part 69283019
aka HC69283019
Type 3003 SSR Edgewound Resistor Coil
Size 3
40 AMP
0.371 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
8 HIC-HC69283020 Hubbell ICD Resistor 3003
Part 69283020
aka HC69283020
Type 3003 SSR Edgewound Resistor Coil
Size 3
45 AMP
0.290 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
9 HIC-HC69283021 Hubbell ICD Resistor 3003
Part 69283021
aka HC69283021
Type 3003 SSR Edgewound Resistor Coil
Size 3
50 AMP
0.245 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
10 HIC-HC69283023 Hubbell ICD Resistor 3003
Part 69283023
aka HC69283023
Type 3003 SSR Edgewound Resistor Coil
Size 3
56 AMP
0.192 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
11 HIC-HC69283024 Hubbell ICD Resistor 3003
Part 69283024
aka HC69283024
Type 3003 SSR Edgewound Resistor Coil
Size 3
60 AMP
0.180 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
12 HIC-HC69283025 Hubbell ICD Resistor 3003
Part 69283025
aka HC69283025
Type 3003 SSR Edgewound Resistor Coil
Size 3
64 AMP
0.156 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
13 HIC-HC69283026 Hubbell ICD Resistor 3003
Part 69283026
aka HC69283026
Type 3003 SSR Edgewound Resistor Coil
Size 3
67 AMP
0.145 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
14 HIC-HC69283027 Hubbell ICD Resistor 3003
Part 69283027
aka HC69283027
Type 3003 SSR Edgewound Resistor Coil
Size 3
70 AMP
0.136 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
15 HIC-HC69283028 Hubbell ICD Resistor 3003
Part 69283028
aka HC69283028
Type 3003 SSR Edgewound Resistor Coil
Size 3
76 AMP
0.110 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
16 HIC-HC69283029 Hubbell ICD Resistor 3003
Part 69283029
aka HC69283029
Type 3003 SSR Edgewound Resistor Coil
Size 3
82 AMP
0.100 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $424.00
17 HIC-HC69283030 Hubbell ICD Resistor 3003
Part 69283030
aka HC69283030
Type 3003 SSR Edgewound Resistor Coil
Size 3
85 AMP
0.087 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $424.00
18 HIC-HC69283031 Hubbell ICD Resistor 3003
Part 69283031
aka HC69283031
Type 3003 SSR Edgewound Resistor Coil
Size 3
94 AMP
0.071 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $424.00
19 HIC-HC69283032 Hubbell ICD Resistor 3003
Part 69283032
aka HC69283032
Type 3003 SSR Edgewound Resistor Coil
Size 3
101 AMP
0.060 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $424.00
Hubbell Type 3003 SSR Edgewound Size 4 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69284008 Hubbell ICD Resistor 3003
Part 69284008
aka HC69284008
Type 3003 SSR Edgewound Resistor Coil
Size 4
13 AMP
3.72 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $262.00
2 HIC-HC69284010 Hubbell ICD Resistor 3003
Part 69284010
aka HC69284010
Type 3003 SSR Edgewound Resistor Coil
Size 4
16 AMP
2.86 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $262.00
3 HIC-HC69284011 Hubbell ICD Resistor 3003
Part 69284011
aka HC69284011
Type 3003 SSR Edgewound Resistor Coil
Size 4
18 AMP
1.96 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
4 HIC-HC69284014 Hubbell ICD Resistor 3003
Part 69284014
aka HC69284014
Type 3003 SSR Edgewound Resistor Coil
Size 4
24 AMP
1.38 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
5 HIC-HC69284015 Hubbell ICD Resistor 3003
Part 69284015
aka HC69284015
Type 3003 SSR Edgewound Resistor Coil
Size 4
27 AMP
1.02 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $300.00
6 HIC-HC69284018 Hubbell ICD Resistor 3003
Part 69284018
aka HC69284018
Type 3003 SSR Edgewound Resistor Coil
Size 4
37 AMP
0.589 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
7 HIC-HC69284020 Hubbell ICD Resistor 3003
Part 69284020
aka HC69284020
Type 3003 SSR Edgewound Resistor Coil
Size 4
45 AMP
0.394 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
8 HIC-HC69284021 Hubbell ICD Resistor 3003
Part 69284021
aka HC69284021
Type 3003 SSR Edgewound Resistor Coil
Size 4
50 AMP
0.334 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $350.00
9 HIC-HC69284028 Hubbell ICD Resistor 3003
Part 69284028
aka HC69284028
Type 3003 SSR Edgewound Resistor Coil
Size 4
76 AMP
0.150 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $424.00
Hubbell Type 3003 SSR Edgewound Size 5 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69285003 Hubbell ICD Resistor 3003
Part 69285003
aka HC69285003
Type 3003 SSR Edgewound Resistor Coil
Size 5
8.5 AMP
10.10 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $288.00
2 HIC-HC69285005 Hubbell ICD Resistor 3003
Part 69285005
aka HC69285005
Type 3003 SSR Edgewound Resistor Coil
Size 5
11 AMP
6.58 OHMS
Ships in 28 Days
Dated 01-20215
- 0 $288.00
3 HIC-HC69285006 Hubbell ICD Resistor 3003
Part 69285006
aka HC69285006
Type 3003 SSR Edgewound Resistor Coil
Size 5
12 AMP
5.38 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $288.00
4 HIC-HC69285008 Hubbell ICD Resistor 3003
Part 69285008
aka HC69285008
Type 3003 SSR Edgewound Resistor Coil
Size 5
13 AMP
4.73 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $288.00
5 HIC-HC69285011 Hubbell ICD Resistor 3003
Part 69285011
aka HC69285011
Type 3003 SSR Edgewound Resistor Coil
Size 5
18 AMP
2.50 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $324.00
6 HIC-HC69285012 Hubbell ICD Resistor 3003
Part 69285012
aka HC69285012
Type 3003 SSR Edgewound Resistor Coil
Size 5
20 AMP
2.30 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $324.00
7 HIC-HC69285013 Hubbell ICD Resistor 3003
Part 69285013
aka HC69285013
Type 3003 SSR Edgewound Resistor Coil
Size 5
22 AMP
2.00 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $324.00
8 HIC-HC69285014 Hubbell ICD Resistor 3003
Part 69285014
aka HC69285014
Type 3003 SSR Edgewound Resistor Coil
Size 5
24 AMP
1.65 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $324.00
9 HIC-HC69285015 Hubbell ICD Resistor 3003
Part 69285015
aka HC69285015
Type 3003 SSR Edgewound Resistor Coil
Size 5
27 AMP
1.30 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $324.00
10 HIC-HC69285016 Hubbell ICD Resistor 3003
Part 69285016
aka HC69285016
Type 3003 SSR Edgewound Resistor Coil
Size 5
30 AMP
65 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $324.00
11 HIC-HC69285017 Hubbell ICD Resistor 3003
Part 69285017
aka HC69285017
Type 3003 SSR Edgewound Resistor Coil
Size 5
34 AMP
0.826 OHMS
Ships in 28 Days
Dated 01-2023
- 0 $374.00
12 HIC-HC69285018 Hubbell ICD Resistor 3003
Part 69285018
aka HC69285018
Type 3003 SSR Edgewound Resistor Coil
Size 5
37 AMP
0.75 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $374.00
13 HIC-HC69285019 Hubbell ICD Resistor 3003
Part 69285019
aka HC69285019
Type 3003 SSR Edgewound Resistor Coil
Size 5
40 AMP
0.65 OHMS
Ships in 28 Days
Dated 01-2021
- 0 $374.00
14 HIC-HC69285020 Hubbell ICD Resistor 3003
Part 69285020
aka HC69285020
Type 3003 SSR Edgewound Resistor Coil
Size 5
45 AMP
0.499 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2023
- 0 $374.00
15 HIC-HC69285021 Hubbell ICD Resistor 3003
Part 69285021
aka HC69285021
Type 3003 SSR Edgewound Resistor Coil
Size 5
50 AMP
0.422 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $374.00
16 HIC-HC69285022 Hubbell ICD Resistor 3003
Part 69285022
aka HC69285022
Type 3003 SSR Edgewound Resistor Coil
Size 5
52 AMP
0.390 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $374.00
17 HIC-HC69285023 Hubbell ICD Resistor 3003
Part 69285023
aka HC69285023
Type 3003 SSR Edgewound Resistor Coil
Size 5
56 AMP
0.3310 OHMS
Ships in 28 Days
Dated 01-2023
- 0 $374.00
18 HIC-HC69285024 Hubbell ICD Resistor 3003
Part 69285024
aka HC69285024
Type 3003 SSR Edgewound Resistor Coil
Size 5
60 AMP
0.3310 OHMS
Ships in 28 Days
Dated 01-20231
- 0 $450.00
19 HIC-HC69285025 Hubbell ICD Resistor 3003
Part 69285025
aka HC69285025
Type 3003 SSR Edgewound Resistor Coil
Size 5
64 AMP
0.268 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2023
- 0 $450.00
20 HIC-HC69285026 Hubbell ICD Resistor 3003
Part 69285026
aka HC69285026
Type 3003 SSR Edgewound Resistor Coil
Size 5
67 AMP
0.249 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $450.00
21 HIC-HC69285027 Hubbell ICD Resistor 3003
Part 69285027
aka HC69285027
Type 3003 SSR Edgewound Resistor Coil
Size 5
70 AMP
0.236 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $450.00
22 HIC-HC69285028 Hubbell ICD Resistor 3003
Part 69285028
aka HC69285028
Type 3003 SSR Edgewound Resistor Coil
Size 5
76 AMP
0.191 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $450.00
23 HIC-HC69285029 Hubbell ICD Resistor 3003
Part 69285029
aka HC69285029
Type 3003 SSR Edgewound Resistor Coil
Size 5
82 AMP
0.1730 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $550.00
24 HIC-HC69285030 Hubbell ICD Resistor 3003
Part 69285030
aka HC69285030
Type 3003 SSR Edgewound Resistor Coil
Size 5
85 AMP
0.150 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $550.00
25 HIC-HC69285031 Hubbell ICD Resistor 3003
Part 69285031
aka HC69285031
Type 3003 SSR Edgewound Resistor Coil
Size 5
94 AMP
0.124 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $550.00
26 HIC-HC69285032 Hubbell ICD Resistor 3003
Part 69285032
aka HC69285032
Type 3003 SSR Edgewound Resistor Coil
Size 5
101 AMP
0.105 OHMS
Ships in 28 Days, NC Archdale
Dated 01-2021
- 0 $550.00
Hubbell Type 3003 SSR Edgewound Size 6 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69286005 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (11.0a, 8.00O) [Lead time: 3-4 wks]
aka HC69286005
- 0 $324.00
2 HIC-HC69286008 Hubbell ICD Resistor 3003
Part 69286008
aka HC69286008
Type 3003
SSR Hexwound
Size 6
Resistor Coil
13.00 AMP
5.750 OHM
Ships in 3 to 4 Weeks, TX
Dated 06-2022
- 0 $324.00
3 HIC-HC69286010 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (16.0a, 4.42O) [Lead time: 3-4 wks]
aka HC69286010
- 0 $324.00
4 HIC-HC69286011 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (18.0a, 3.04O) [Lead time: 3-4 wks]
aka HC69286011
- 0 $374.00
5 HIC-HC69286015 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (27.0a, 1.58O) [Lead time: 3-4 wks]
aka HC69286015
- 0 $374.00
6 HIC-HC69286020 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (45.0a, 0.603O) [Lead time: 3-4 wks]
aka HC69286020
- 0 $424.00
7 HIC-HC69286021 Hubbell ICD Resistor 3003
Part 69286021
aka HC69286021
Type 3003
SSR Edgewound
Size 6 Resistor Coil
50.0 AMP
0.511 OHM
Ships in 20 Days, TX
Dated 08-2021
- 6 $424.00
8 HIC-HC69286023 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (56.0a, 0.400O) [Lead time: 3-4 wks]
aka HC69286023
- 0 $424.00
9 HIC-HC69286024 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (60.0a, 0.374O) [Lead time: 3-4 wks]
aka HC69286024
- 0 $524.00
10 HIC-HC69286027 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (70.0a, 0.286O) [Lead time: 3-4 wks]
aka HC69286027
- 0 $524.00
11 HIC-HC69286028 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (76.0a, 0.232O) [Lead time: 3-4 wks]
aka HC69286028
- 0 $524.00
12 HIC-HC69286032 Hubbell Type 3003 SSR Edgewound Sz6 Resistor Coil (101.0a, 0.127O) [Lead time: 3-4 wks]
aka HC69286032
- 0 $624.00
Hubbell Type 3003 SSR Edgewound Size 7 Resistor Coil
No Part
Number
Description Image Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 HIC-HC69287003 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (8.5a, 14.32O) [Lead time: 3-4 wks]
aka HC69287003
- 0 $350.00
2 HIC-HC69287004 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (10.0a, 10.90O) [Lead time: 3-4 wks]
aka HC69287004
- 0 $350.00
3 HIC-HC69287010 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (16.0a, 5.20O) [Lead time: 3-4 wks]
aka HC69287010
- 0 $350.00
4 HIC-HC69287011 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (18.0a, 3.57O) [Lead time: 3-4 wks]
aka HC69287011
- 0 $412.00
5 HIC-HC69287014 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (24.0a, 2.36O) [Lead time: 3-4 wks]
aka HC69287014
- 0 $412.00
6 HIC-HC69287015 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (27.0a, 1.86O) [Lead time: 3-4 wks]
aka HC69287015
- 0 $412.00
7 HIC-HC69287017 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (34.0a, 1.18O) [Lead time: 3-4 wks]
aka HC69287017
- 0 $500.00
8 HIC-HC69287018 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (37.0a, 1.07O) [Lead time: 3-4 wks]
aka HC69287018
- 0 $500.00
9 HIC-HC69287019 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (40.0a, 0.928O) [Lead time: 3-4 wks]
aka HC69287019
- 0 $500.00
10 HIC-HC69287020 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (45.0a, 0.708O) [Lead time: 3-4 wks]
aka HC69287020
- 0 $500.00
11 HIC-HC69287021 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (50.0a, 0.599O) [Lead time: 3-4 wks]
aka HC69287021
- 0 $500.00
12 HIC-HC69287024 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (60.0a, 0.440O) [Lead time: 3-4 wks]
aka HC69287024
- 0 $600.00
13 HIC-HC69287026 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (67.0a, 0.354O) [Lead time: 3-4 wks]
aka HC69287026
- 0 $600.00
14 HIC-HC69287027 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (70.0a, 0.335O) [Lead time: 3-4 wks]
aka HC69287027
- 0 $600.00
15 HIC-HC69287028 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (76.0a, 0.272O) [Lead time: 3-4 wks]
aka HC69287028
- 0 $600.00
16 HIC-HC69287029 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (82.0a, 0.246O) [Lead time: 3-4 wks]
aka HC69287029
- 0 $698.00
17 HIC-HC69287031 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (94.0a, 0.176O) [Lead time: 3-4 wks]
aka HC69287031
- 0 $698.00
18 HIC-HC69287032 Hubbell Type 3003 SSR Edgewound Sz7 Resistor Coil (101.0a, 0.150O) [Lead time: 3-4 wks]
aka HC69287032
- 0 $698.00
Secure Online Order


Secure Online Order

8,387 part numbers available for
online order

Shopping Cart
Empty
Checkout is secure


Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Hubbell part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Magnet Controls

Magnet Controls

   • 4291 Euclid Magnet Controllers
     Varistor Type
   • 4292 Compact Magnet
   • Controller YARDMASTER
   • 4292P Compact Magnet
     Controller YARDMASTER PUP
   • 4295 Euclid Magnet Controller
     Resistor Type Auto Discharge
   • 4296 Euclid Magnet Controller
     Resistor Type Manual
     Discharge
   • 4310 Lifting Magnet Disconnect
     Switch
   • 4320 Lifting Magnet Power
     Supplies
   • Service Bulletins (Publications)

Hubbell Euclid Magnet Controllers utilize heavy duty components and circuitry arranged to provide optimum control of your lifting magnet. Full featured NEMA Type 1 or 3R enclosed magnet controllers are available for immediate shipment. Of course, we welcome inquiries for custom applications as well.
DC Devices

DC Devices

   • 42264 Type 264 400 AMP
     600 Volt DC Contactor
   • 42700 Type 700 1250 AMP
     1000 Volt DC Contactor
   • 42703 Type 703 5000 AMP
     1000 Volt DC Contactor
   • 42710 Type 710 700 AMP
     1500 Volt DC Contactor Dual
     Two Pole Switch
   • 42711 42712 Type 711/712
     1600 AMP 1500 Volt DC
     Motor Operated Switch
   • 42716 Type 716 1600 AMP
     1500 Volt DC Contactor
   • 42720 Type 720 200 AMP
     600 Volt DC Contactor
   • Service Bulletins (Publications)

The latest addition to the Hubbell Industrial Controls family are DC Devices used in solid-state adjustable speed drives, uninterruptable power supplies, fuel cells, crane controls, transit and rail vehicles, gas and oil well drilling equipment, mining machinery, and more. These devices are ideal for a wide range of heavy duty applications.

Electronic Components

Electronic Components

   • 5330 Electronic Frequency
     Relay
   • 5350 Static In-Line Timer
   • 5360 Arc Suppressor
   • 5370 DC Electronic Overload
     Relay

The Bulletin 5330 Electronic Frequency Relay (EFR) master/slave system is designed to be used with wound rotor motor controls. The master unit is a complete frequency relay providing one point of frequency detection.

The Bulletin 5350 Static In-Line Timer is a solid state timing unit for use in AC or DC contactor and relay control.

The Bulletin 5360, Hubbell Arc Suppressor, is designed to reduce contact arcing in DC control circuits where the inductive coil loads of contactors and relays are interrupted.

The Bulletin 5370 Electronic Overload Relay receives line current signals from an ammeter shunt and performs both the Inverse Time as well as the instantaneous Trip functions normally performed by two (2) separate electro-mechanical overload relays.
Limit Switches

Limit Switches

   • 4220 Euclid Power Limit Switch
   • 4225 Quick Break Power Limit
     Switch
   • Series 54 Geared Rotary
     Limit Switch NEMA 1-12
   • Series 55 Geared Rotary Limit
     Switch NEMA 4, 7, 9

Type 4220: D-C Limit Switches are devices that are used to interrupt the main power circuit, setting up a dynamic braking circuit that quickly stops hook travel with a minimum of drift.

A-C Limit Switches are similar in construction to D-C Limit Switches. The difference is in operation. A-C Limit Switches disconnect two power lines to the hoist motor which then is stopped by a magnetic brake.

Type 4225: Euclid quick break limit switches for hoists are normally closed by the weight of the striking lever. The movement of the lever on its upward travel, when engaged by the hoist hook block on its upward travel, causes the switch to quickly break the circuit to the motor with very little upward movement of the crane hook. The switch is automatically reset by the weight of the striking lever when the hook is lowered.

AC/DC Contactors and Relays

AC/DC Contactors and Relays

   • 5110 AC Magnetic Contactor
   • 5210 DC Magnetic Contactor
   • 5247 Alternating Relay
   • 5320 Euclid DC Relay
   • Service Bulletins (Publications)

Rugged Euclid contactors feature many unique design and engineering advancements that greatly simplify applications, installations and servicing. Over 65 years of experience in design as well as manufacturing has been incorporated into these highly reliable units.

DC Relays, Type 5320, general purpose control, voltage sensitive, current, and plugging relays are built to withstand severe service using the latest technology in materials for insulating and high-strength. They are recommended for use on heavy industry dc drives such as cranes and mill auxiliaries.
Master Switch/Drum Controllers

Master Switch/Drum Controllers

   • 4211 Mini-Master Switch
   • 4215 Magnet Controller
     Lift/Drop Switches
   • 4216 Cam Operated Master
     Switch
   • 4253 Class 53 Master Switch
   • 4258 Class 58 Drum Switch
   • Service Bulletins (Publications)

Type 4211 Mini-Master: The Euclid Mini-Master Switch uses a handle operated cam switch mechanism in a NEMA rated housing. It is engineered for use where master switch control is preferred, for CMAA duty overhead crane and similar applications.

Type 4216 Mill Master: These master switches are of rugged construction to withstand the rough service encountered on applications in the steel mills, such as crane, coal, and ore bridges, blooming and rolling mill auxiliaries, etc., where either floor or desk mounting is required.

Type 4253: Master Switches are used to provide single handle pilot control of hoists, cranes, oven pushers, car movers and other equipment requiring speed steps of wound rotor or direct current motors.

Type 4258: Drum Controllers start, stop and change the speed and/or rotating direction of reversible AC and DC electric motors.

Magnetic Drum Brakes

Magnetic Drum Brakes

   • Class 5010 Type F Magnetic
     Drum Brakes
   • Class 5060 Type AT Adjustable
     Torque Brakes
   • Class 5010 Brake Rectifier
   • Brake Shoes, Linings, Bolts
     and Pins
   • Service Bulletins (Publications)

Class 5010 Type F: Magnetic drum brakes are spring set, electrically released, drum type friction brakes which are used with either AC or DC motors, used as holding brakes on DC series motor drives, crane hoists, mill drives, and transfer cars.

Class 5060 Type AT: Adjustable torque brakes are dual-purpose, drum-type friction brakes that combine an electrically released, spring-set holding brake with an electrically operated, adjustable torque stopping brake within one brake frame.

Class 5010 Brake Rectifier: Converts AC line power to DC for use with a rectifier operated brake. A high speed forcing circuit provides optimum operation of the brake.
LED Bridge Crane Lighting

LED Bridge Crane Lighting

LED Bridge Crane Lighting: The HBLC LED Highbay is specifically designed to be used on heavy industrial bridge cranes while utilizing AC or DC input voltage. Custom engineered LED optics provide evenly distributed light for bridge crane operators and others working under the crane for increased visibility and safety.
Pendant Pushbutton Stations

Pendant Pushbutton Stations

   • 2040 Euclid PBM Pendant
     Station
   • 2030 Compact Pendant Station
   • 2020 Euclid PBP Pendant
     Station
   • 2015, 2016, 2017 Euclid
     Pendant Station
   • 2001 Euclid HD Steel Pendant
     Station
   • PBC, WPBC and XPBC
     Replacement Parts

HD stations of heavy duty steel or aluminum may be pendant or surface mounted. They are shipped fully assembled and ready for customer connections.

PBC, WPBC, and XPBC are cam operated stations assembled in a variety of enclosure types. These stations are available with special circuit configuration and can be from one to five speeds, stepped or stepless operation. Many options are available for this type of station, including duplex construction with conduit boxes selector switches and many other special features.
Power Resistors

Power Resistors

   • SSR Type 3003 Power
     Resistor
   • SSR Type 3003 Power
     Resistor Frame
   • SSR Type 3003 Power
     Resistor Metal Cover
   • Euclid Type 3004 K Power
     Resistor
   • HHC Type 3005 Power
     Resistor

Hubbell Type SSR Power resistors from 1.3 amps through 101 amps are available, from unassembled to completely assembled in frames with covers. Standard assemblies are pre-engineered for primary or secondary resistance, and are used in typical applications such as motor starting or dynamic braking. Construction elements are stainless steel around a porcelain insulator, manufactured for endurance and reliability.

Heavy duty Types K1 and HHC resistors also utilize continuous stainless steel elements, with no weld joints where hot spots could develop. These resistors are available in ranges from 38 amps to 695 amps.

Pressure Switches

Pressure Switches

   • 4269ES 69ES Pressure Switch
     Water Systems
   • 4269W 69W Pressure Switch
     Water Systems
   • 4269J 69J Pressure Switch
     Air Systems
   • 4269H 69H Pressure Switch
     Air Systems
   • 4269SA 69 Pressure Switch
     Special Application
   • Available from stock

Hubbell pressure switches provide automatic control for air or water systems such as compressors, dry sprinkler systems, and well pumps or pumping systems. Thousands of variations are available to provide maximum flexibility at minimum cost.
Speed Switches

Speed Switches

   • 2200 Speed Switch Type PR
   • 2210 Speed Switch Type C
   • 2220 Speed Switch Type F
   • 2243 Speed Switch Type D
   • 2260 Speed Switch Type E
   • 2310 Speed Switch
     Non-contact

Speed responsive switches detect motion, or sense over-speed or under-speed occurrences of industrial machinery or motors. Hubbell Industrial Controls, Inc. has both direct coupled or non-contact type switches for; directional, non-directional, plugging, anti-plugging, over-speed, under-speed, and also zero-speed applications. Many enclosure styles are available including surface or flange mounting with NEMA 3, 4, 7, 9, 10 or 13 construction.
Radio Control Products

Radio Control Products

A typical radio remote control system consists of a portable transmitter carried by the operator, and a receiver installed on the crane, the locomotive, or other remote machinery. Each system operates on a licensed frequency in the 72 to 76 MHz or the 450 to 470 MHz bands, requiring the user to have an FCC license for the transmitter.
Disconnect Switches

Disconnect Switches

   • 4245 Euclid Manual-Magnetic
     Disconnect Switch
   • 4310 Lifting Magnet
     Disconnect Switch
   • 5140 Fused And Non-Fused
     Disconnect Switch

Type 4245: The Manual-Magnetic Disconnect Switches are combinations manually and magnetically operated contactors enclosed in a NEMA Type wall-mounted enclosure.

The contactors for the disconnect switches are the same as the contactors used on Euclid's crane and mill type magnetic controllers. Silver faced contacts are standard.

Type 5410: Fused Disconnect - Rated 30amp-200amp. UL Listed.


Line-Arc AC and DC Contactors

Line-Arc AC and DC Contactors

   • 7004 Type M Line-Arc DC
     Contactors
   • 8503 Type M Line-Arc AC
     Contactors

Class 7004 Type M Line-Arc® DC Contactors: Extremely rugged, mill duty DC contactors. Built of the highest-grade materials and tested to the toughest duty standards, Type M contactors feature the LINE-ARC method of arc extinction for the longer tip life. The Type M also features steel pan mounting and readily accessible power and control terminations.

Class 8503 Type M Line-Arc® AC Contactors: AC version of our Class 7004 Type M contactor. Ideally suited to control AC mill motors, these contactors are designed especially for heavy industry AC drives, such as cranes and mill auxiliaries. Furnished with a DC operating coil, rectifier blocks are available to supply power for several contactors.

Lifting Magnet Controllers

Lifting Magnet Controllers

  • Class 6815 Type A Lifting
    Magnet Controllers

  • Class 6815 Type M
    Magnet Controllers

  • Class 6815 Type MF Magnet
    Controllers with Fanning
    Control

  • Class 6815 Type MG1 Lever
    Lift-Drop Master Switch

   • Service Bulletins (Publications)
Power Limit Switches

Youngstown Power Limit Switches

   • 6170 Youngstown Power
     Limit Switches for AC and
     DC Cranes
   • 6715 Tab-Weld Resistors
   • Service Bulletins (Publications)

This OSHA-required switch limits crane hoist over-travel in the hoisting direction. It is operated by the crane hoist hook block and directly interrupts the hoist motor current. EC&M created the first power limit switches used on cranes to help provide the highest level of crane safety. Youngstowns feature an automatic gravity reset mechanism, sealed bearings, and right- or left-hand operating arms.
Replacement Parts

Replacement Parts and Modification Kits

   • DC Coil
   • Replacement Parts Kits
   • Type MX11 Electrical Interlocks
   • Type AI1 Arc Suppressor
   • Types MM1, MM2, MM3, MM4,
     MM5 Mechanical Interlocks
   • Types KX3, KX4, KX5 Contact
     Kits
   • Type ML1, ML2, ML3 Lug Kits
   • Types MT1, MT2, MT3, MT4,
     MT5 Tie Bar Kit
   • Pneumatic Timer Kit
   • Type K DC Relays
   • Type ST DC Static Timer
   • Type SSI DC Acceleration
     Module
   • 9055 Magnetic Current
     Overload Relays


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com   Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
  ACH Form: Word   /   PDF
Supplier of Industrial Brake Parts Since 1985
